Product details

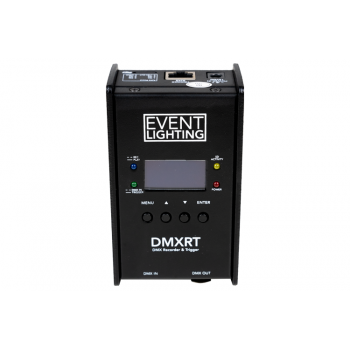

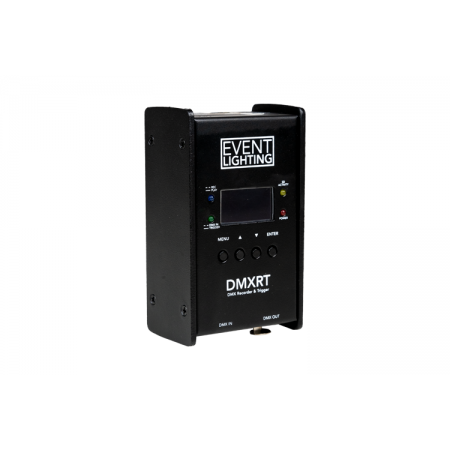

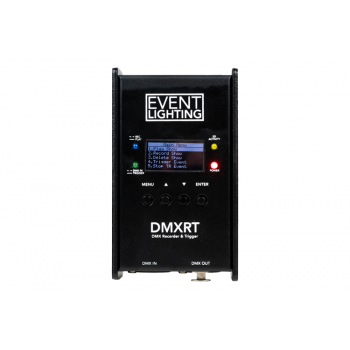

The DMXRT is a DMX recorder and trigger which can be used to store and playback any show or scene from the included micro SD card. The recording feature works through the 3 pin DMX input. It is able to store scenes and playback once or on loop. The unit is also capable of on-board configuration to trigger up to 6 shows through RJ45.
Features
Play shows using 6 external triggers or the built-in internal trigger.
Play shows or scenes a single time, or continuously in a loop.
Utilise advanced features such as delays, giving you complete control of the playback.
Technical Specifications
Power
Input Voltage: 100-240V AC, 50/60Hz
Power Supply: 12V DC, 1500mA
Control
Control Protocol: DMX512

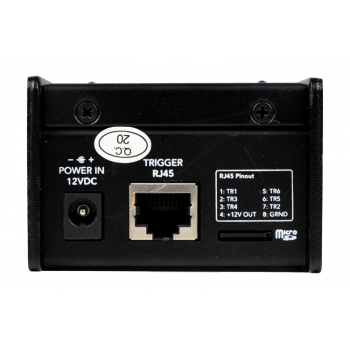

Connections: 3-pin XLR in and out, micro SD slot, RJ45 in
RJ45 for up to 6 external triggers
Storage: Micro SD card
Housing
Material: Aluminium
IP Rating: IP20
Dimensions: 115x67x45 mm
Weight: 0.4 kg
Optional Accessories
DMXRTWALL
User Manual Download
Features
Play shows using 6 external triggers or the built-in internal trigger.
Play shows or scenes a single time, or continuously in a loop.
Utilise advanced features such as delays, giving you complete control of the playback.
Technical Specifications
Power
Input Voltage: 100-240V AC, 50/60Hz
Power Supply: 12V DC, 1500mA
Control
Control Protocol: DMX512
Connections: 3-pin XLR in and out, micro SD slot, RJ45 in
RJ45 for up to 6 external triggers
Storage: Micro SD card
Housing
Material: Aluminium
IP Rating: IP20
Dimensions: 115x67x45 mm
Weight: 0.4 kg
Optional Accessories
DMXRTWALL
User Manual Download
