Product details
Photometrics
Light Source: 1x 500 W 3,200 K and 1x 500 W 5,600 K COB LED
CRI: 95+
Beam Angle: 16°~25°
Field Angle: 30°~65°

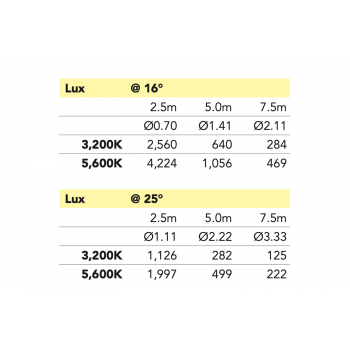

Output: 3,200 K: 2,560 lux @ 2.5 m @ 12°, 5,600 K: 4,224 lux @ 2.5 m @ 12°
Lens: 150 mm Fresnel
PWM: 8,000Hz
LED Lifespan: 50,000 hours
Effects
Dimming: 0~100%, 16-bit
Dimming Curves: 3
Strobe: 1~25 Hz
Zoom: Manual, 16°~25°
Power
Power Supply: 100~240 V AC, 50/60 Hz, 200 W
Power Connection: Neutrik® PowerCON in / out
Control
Operational Modes: DMX, Manual & Master / Slave
Display: 4-button LCD control panel
Control Protocol: DMX512
DMX Channels: 2 / 3
Control Interface: 3-pin XLR (optional: 5-pin XLR)
Housing
Housing Materials: Aluminium and ABS, matte black finish
Cooling: Sensor Thermostat Controlled Variable Speed Fan
Net Weight: 5 kg
IP Rating: IP20
Accessories

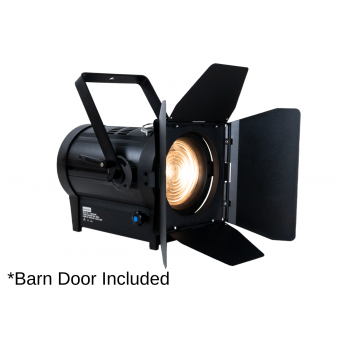

Barn Door: Included

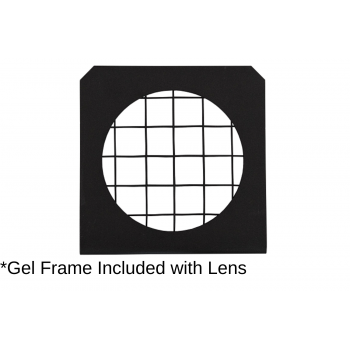

Gel Frame: Included
Product Specification Sheet Download
Download User Manual
Light Source: 1x 500 W 3,200 K and 1x 500 W 5,600 K COB LED
CRI: 95+
Beam Angle: 16°~25°
Field Angle: 30°~65°
Output: 3,200 K: 2,560 lux @ 2.5 m @ 12°, 5,600 K: 4,224 lux @ 2.5 m @ 12°
Lens: 150 mm Fresnel
PWM: 8,000Hz
LED Lifespan: 50,000 hours
Effects
Dimming: 0~100%, 16-bit
Dimming Curves: 3
Strobe: 1~25 Hz
Zoom: Manual, 16°~25°
Power
Power Supply: 100~240 V AC, 50/60 Hz, 200 W
Power Connection: Neutrik® PowerCON in / out
Control
Operational Modes: DMX, Manual & Master / Slave
Display: 4-button LCD control panel
Control Protocol: DMX512
DMX Channels: 2 / 3
Control Interface: 3-pin XLR (optional: 5-pin XLR)
Housing
Housing Materials: Aluminium and ABS, matte black finish
Cooling: Sensor Thermostat Controlled Variable Speed Fan
Net Weight: 5 kg
IP Rating: IP20
Accessories
Barn Door: Included
Gel Frame: Included
Product Specification Sheet Download
Download User Manual
