Product details
Photometrics
Light Source: 300 W RGBALC LED Module
CRI: 86+
Beam Angle: 12°~25°
Field Angle: 15°~55°
Lens: 175 mm Fresnel
Output: 10,706 lux @ 2.5 m @ 15°
PWM: 8,000 Hz
LED Lifespan: 50,000 hours
Effects
Dimming: 0~100%, 8-bit / 16-bit
Strobe: 1~25 Hz
Zoom: Motorised, 12°~55°
Power
Power Consumption: 300 W
Input Voltage: 100~240V AC, 50/60 Hz
Power Connection: Seetronic® True 1 in / out
Control
Operation: DMX, manual, master/slave
Display: 4-Button LCD control panel
DMX Protocol: DMX512
DMX Channels: 9/10/17/8H/9H
DMX Interface: 3-pin XLR, 5-pin XLR
Housing
Housing Materials: Aluminium, matte black finish
Cooling: Sensor Thermostat Controlled Variable Speed Fan
IP Rating: IP20
Net Weight: 6.5 kg
Accessories

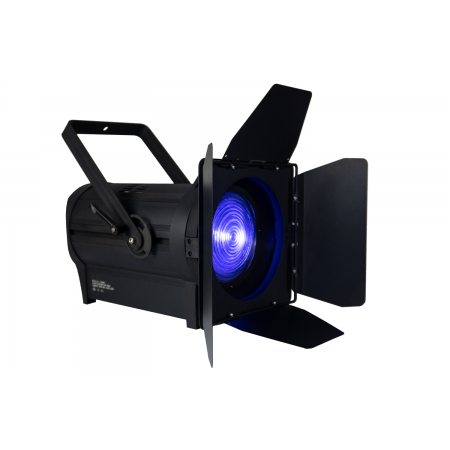

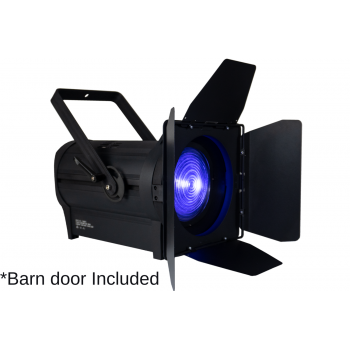

Included: Gel frame, barn door
Product Specification Sheet Download
Download the User Manual
Light Source: 300 W RGBALC LED Module
CRI: 86+
Beam Angle: 12°~25°
Field Angle: 15°~55°
Lens: 175 mm Fresnel
Output: 10,706 lux @ 2.5 m @ 15°
PWM: 8,000 Hz
LED Lifespan: 50,000 hours
Effects
Dimming: 0~100%, 8-bit / 16-bit
Strobe: 1~25 Hz
Zoom: Motorised, 12°~55°
Power
Power Consumption: 300 W
Input Voltage: 100~240V AC, 50/60 Hz
Power Connection: Seetronic® True 1 in / out
Control
Operation: DMX, manual, master/slave
Display: 4-Button LCD control panel
DMX Protocol: DMX512
DMX Channels: 9/10/17/8H/9H
DMX Interface: 3-pin XLR, 5-pin XLR
Housing
Housing Materials: Aluminium, matte black finish
Cooling: Sensor Thermostat Controlled Variable Speed Fan
IP Rating: IP20
Net Weight: 6.5 kg
Accessories
Included: Gel frame, barn door
Product Specification Sheet Download
Download the User Manual
