Product details

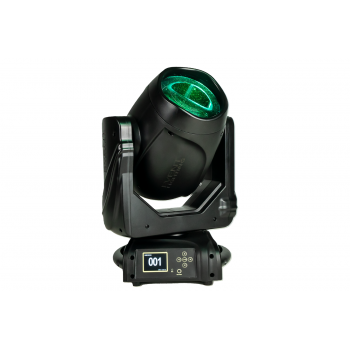

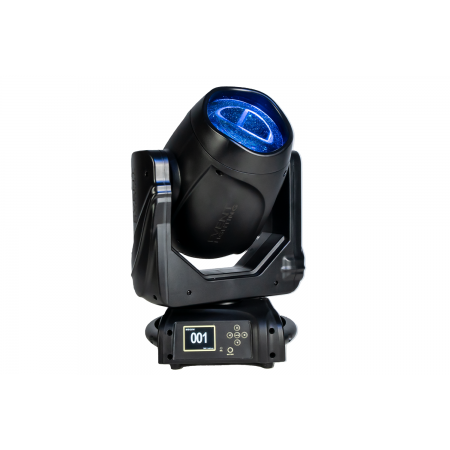

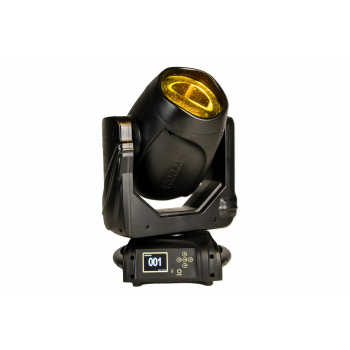

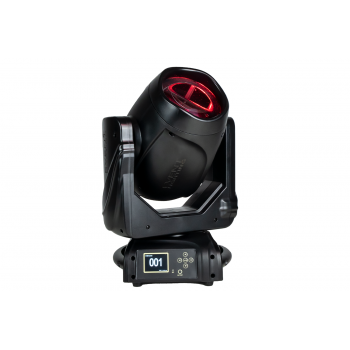

With a beam angle of just 1°, the HAVOC B120 produces a very narrow beam, powered by a 120W White LED. This fixture features 14+ open colours, 17+ open static gobos and two prisms as well as frost filter.
Photometrics
Light Source: 120 W White LED
Beam Angle: 1°.
Output: 2,170 lumen, 150,000 lux @ 5 m
LED Lifespan: 60,000 hours.
Colour
14 colours + open
Gobo
17 gobos + open
Effects
Focus: Motorised
Prism: 6-linear and 8-facets prisms
Frost: Yes
Movement
16-bit, auto-reposition
Pan: 630° (4.3 s), 540° (3.9 s)
Tilt: 233° (2.2 s)
Power
Input Voltage: 100~240 V AC, 50/60 Hz, 172 W
Connection: True1 in/out
Control
Operation Modes: DMX, auto, sound active, master/slave
Control Protocol: DMX512, RDM (optional: W-DMX™)
DMX Channels: 14 / 16
RDM: Change DMX address, display flip, X/Y reverse
Control Interface: 3-pin XLR in/out, 5-pin XLR in/out
Display: 2.4″ Colour LCD Control Panel with battery power
Housing
Materials: ABS & steel, matte black finish
Finishing: Matte Black
Cooling: Multi-sensor thermostat controlled variable speed fan
IP Rating: IP20
Net Weight: 12.75 kg
Rigging: 2x omega brackets with 1/4 turn quick locks
Photometrics
Light Source: 120 W White LED
Beam Angle: 1°.
Output: 2,170 lumen, 150,000 lux @ 5 m
LED Lifespan: 60,000 hours.
Colour
14 colours + open
Gobo
17 gobos + open
Effects
Focus: Motorised
Prism: 6-linear and 8-facets prisms
Frost: Yes
Movement
16-bit, auto-reposition
Pan: 630° (4.3 s), 540° (3.9 s)
Tilt: 233° (2.2 s)
Power
Input Voltage: 100~240 V AC, 50/60 Hz, 172 W
Connection: True1 in/out
Control
Operation Modes: DMX, auto, sound active, master/slave
Control Protocol: DMX512, RDM (optional: W-DMX™)
DMX Channels: 14 / 16
RDM: Change DMX address, display flip, X/Y reverse
Control Interface: 3-pin XLR in/out, 5-pin XLR in/out
Display: 2.4″ Colour LCD Control Panel with battery power
Housing
Materials: ABS & steel, matte black finish
Finishing: Matte Black
Cooling: Multi-sensor thermostat controlled variable speed fan
IP Rating: IP20
Net Weight: 12.75 kg
Rigging: 2x omega brackets with 1/4 turn quick locks
