Product details

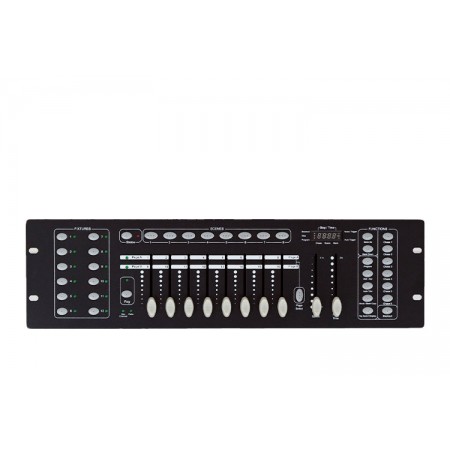

This DMX lighting desk provides independent control of 12 fixtures, with up to 16 channels and access to 240 programmable scenes. With dedicated fade time, speed sliders and separate fog and strobe control, you can run a lighting show. The KONTROL192 has 6 built in chase programs which can be programmed to step through scenes or operate with synchronized sound activation through the internal microphone. A compact and efficient DMX controller, ideal for small to medium productions and installations - also supplied with rack mountable in a 3RU format.
DMX512 protocol with 192 channels
Independent control of 12 fixtures, 16ch each
Sound-activated: synchronized music activation through internal microphone
Scenes: 240 programmable scenes (30 banks of 8 scenes)
Chases: 6 chased of up to 240 scenes per chase
Dedicated fade time slider
Dedicated speed slider
DMX polarity selector
Fog and strobe control
Power: 12V DC 500mA
MIDI Signal: 5 din pin standard interface
3RU compatible
Dimensions: 482 x 132 x 73 mm
Weight: 2.6kg
Product Specification Sheet Download
User Manual Download
DMX512 protocol with 192 channels
Independent control of 12 fixtures, 16ch each
Sound-activated: synchronized music activation through internal microphone
Scenes: 240 programmable scenes (30 banks of 8 scenes)
Chases: 6 chased of up to 240 scenes per chase
Dedicated fade time slider
Dedicated speed slider
DMX polarity selector
Fog and strobe control
Power: 12V DC 500mA
MIDI Signal: 5 din pin standard interface
3RU compatible
Dimensions: 482 x 132 x 73 mm
Weight: 2.6kg
Product Specification Sheet Download
User Manual Download
