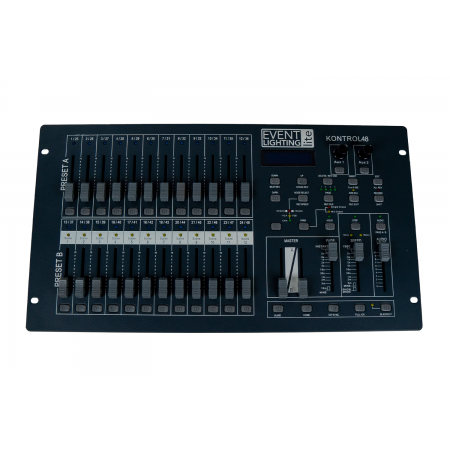

KONTROL48 – 48 channel / 24 slider DMX controller

Features

DMX512 protocol with 48 channels
Scenes: Up to 96 (8 banks of 12 scenes)
Steps: 96,000 programmable steps, up to 999 per scene
Dedicated fade time fader
Dedicated speed fader
Dedicated audio level fader
Dedicated Crossfader, dark and kill buttons
Mix and match chases
Override chases live
MIDI in, out and thru
Direct audio input
Auto, sound active, tap sync modes
DMX polarity selector

Specifications




Power

Input: 12V DC, 800mA

Control

DMX: 48 channels
Control: 3-pin DMX out, 5-pin DMX out, MIDI in, MIDI out, MIDI thru, Audio in

Housing

Dimensions: 483x267x89 mm
Weight: 4.5 kg
Rackmount: 6 RU




Download the user manual
