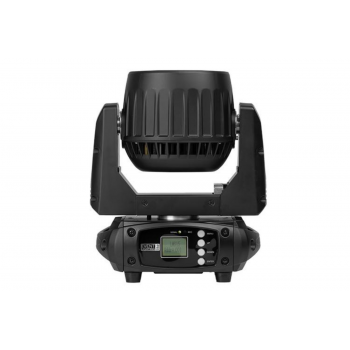

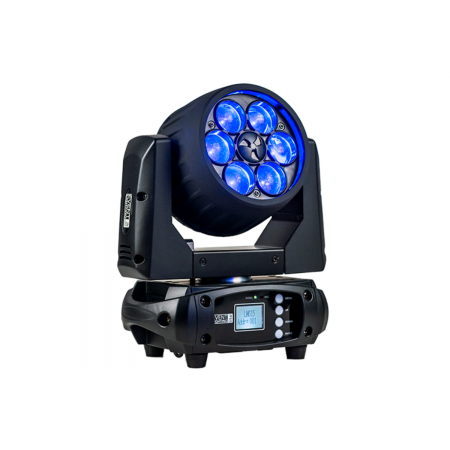

LM6x15 – Mini Moving Head Zoom Wash – 6 x 15W RGBW, 6-60° motorised zoom

This 6x 15W zoom wash has a beam angle of 6-60 degrees. With RGBW 4-in-1 LEDs this unit comes with useful tools such as sound activation, built-in programs and pan/tilt limit modes. This unit also has the option of wireless DMX.




Photometric

Light Source: 6pcs 15W RGBW LEDs
Beam Angle: 6°~60°
Output: 8,000lux @ 3m @ 6°
PWM: 800Hz
LED Lifespan: 50,000hours

Effects

Dimming: 0~100%
Strobe: 0.6~22Hz
Zoom: 6°~60°

Movement

8/16 – bit, auto-reposition
Pan: 360°/540°/630°
Tilt: 90°/180°/270°
Limit mode: centre/corner/edge

Power

Input Voltage: 100~240V AC, 50/60Hz
Power Consumption: 99W

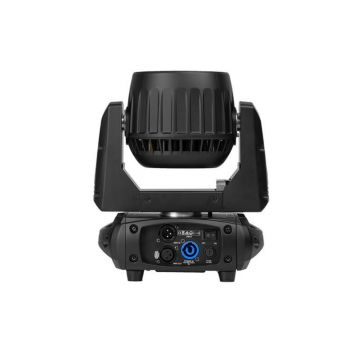

Connection: PowerCon in
Fuse: F4A, 250V

Control

Protocol: DMX512
Operation modes: DMX, auto, manual, sound active, master/slave
DMX Channels: 15/13
Interface: 3-pin XLR in/out
Built-in Programming: Yes
Sound Active: Yes
Display: 4-button 1.44inch TFT LCD display control panel

Housing

Materials: Metal & flame retardant ABS
Finishing: Matte black
IP rating: IP20
Cooling: Fan
Net Weight: 4kg
Rigging: 1x omega bracket with 1/4 turn quick locks

Optional Accessories

Road case: LM4CASE
Wireless DMX: WDMXLMS
