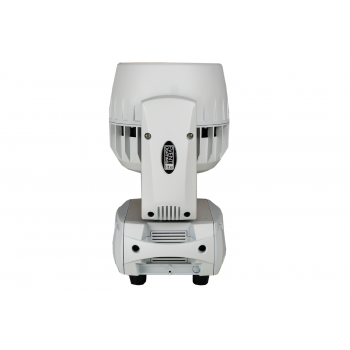

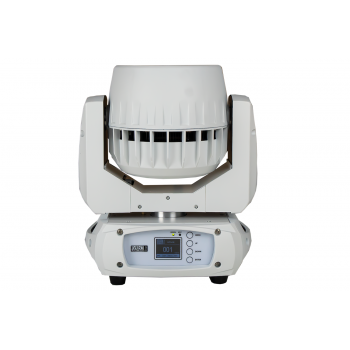

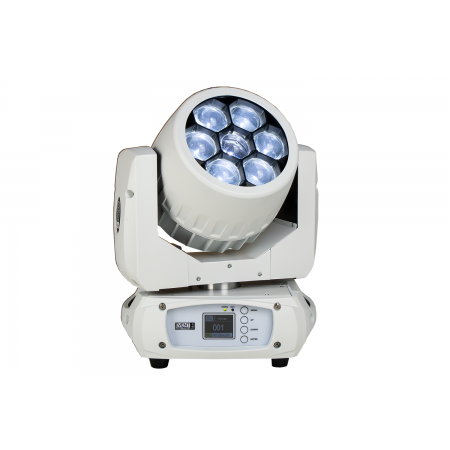

LM7x30W – Moving Head Zoom Wash – 7 x 30W RGBW, 6-60° motorised zoom – (WHITE CHASSIS)

This 7x 30W zoom wash has a beam angle of 6-60 degrees. With RGBW 4-in-1 LEDs this unit comes with useful tools such as sound activation, built-in programs and pan/tilt limit modes. This unit also has the option of wireless DMX.




Photometric

Light Source: 7pcs 30W RGBW LEDs
Beam Angle: 6°~60°
Output: 19,130lux @ 3m @ 6°
PWM: 1,000Hz
LED Lifespan: 50,000hours

Effects

Dimming: 0~100%
Strobe: 1.4~21Hz
Zoom: 6°~60° linear via DMX

Movement

8/16 – bit, auto-reposition
Pan: 360°/540°/630°
Tilt: 90°/180°/270°
Limit mode: Centre/Corner/Edge

Power

Input Voltage: 90~260V AC, 50/60 Hz
Power Consumption: 240W
Connection: PowerCon in
Fuse: F4A, 250V

Control

Protocol: DMX512
Operation Modes: DMX, manual, auto, sound active, master/slave
DMX Channels: 15/17
Interface: 3-pin XLR in/out
Built-in Programming: Yes
Sound Active: Yes
Display: 4-button 1.8inch TFT LCD display control panel

Housing

Materials: Metal & flame retardant ABS
Finishing: Matte black
IP rating: IP20
Cooling: Fan
Net Weight: 6kg
Rigging: 1pc omega brackets with 1/4- turn quick locks

Optional Accessories

Road case: LM2CASE7X30
