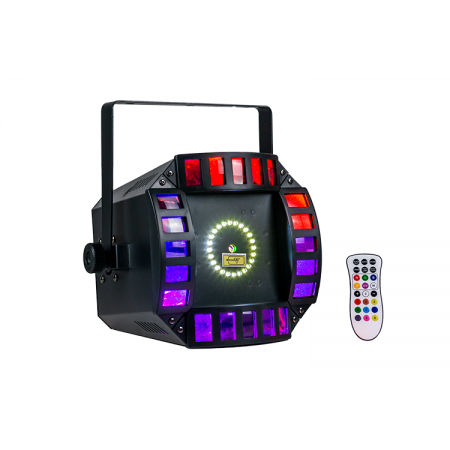

ORBIT2 – 3 in 1 effect light, 24 x 0.2W White LED strobe and 2x 12W RGB LED with 5×4 lens multi crossing beam and 100mW R and 30mW G laser

The ORBIT2 has 2x 12W RGBW 4-in-1 LEDs for the derby effect, 24x 0.2W SMD white LEDs for the strobe effect and a green and red laser diode. This unit has the added versatility of DMX, manual, auto, sound active, master/slave modes and comes with an IR remote for easy control.





Photometric

Light Source:

Derby: 2pcs 12W 4-in-1 RGBW LEDs
Strobe: 24pcs 0.2w SMD White LEDs
Laser: 532nm/30mW (Green) laser diode, 650nm/100mW (red) laser diode


Lifetime: 50,000 hours

Power

Input Voltage: 100-240V AC, 50/60Hz
Power consumption: 45W
Connection: IEC in/out

Control

Protocol: DMX512
Operation Modes: DMX, auto, manual, sound active, IR remote, master/slave
DMX Channels: 2 / 11
Interface: 3-pin XLR in/out
Display: 4-button 4-digit LED display control panel

Housing

Materials: Metal
Finishing: Matte black
IP Rating: IP20
Cooling: no fan
Weight: 3.35kg
Dimensions: 335x335x345 (package)

Download the user manual
