Product details

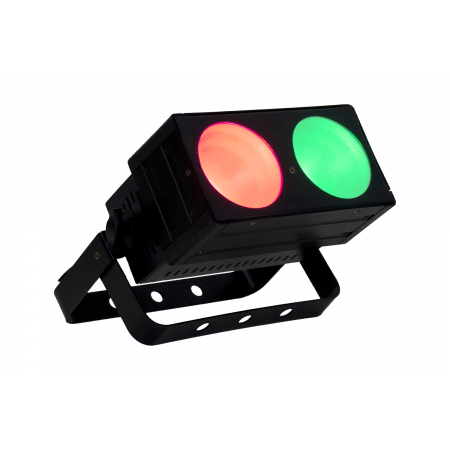

The Event Lighting PAN series feature bright 30W RGB COB LEDs with a wide beam angle, making them ideal for wash and cyclorama duties. The aluminium housing is fanless, making them silent and virtually maintenance-free.

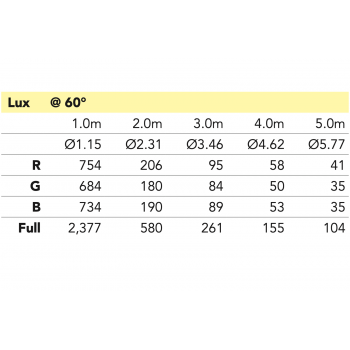

Photometrics
Light Source: 2x 30W RGB COB LEDs
Beam Angle: 60°
Output: 580 lux @ 2 m RGB full on
PWM: 11,700 Hz
LED Lifespan: 50,000 hours
Effects
Dimming: 8-bit + 4x 16-bit Dimming Curves
Strobe: 1~30 Hz
Power
Input Voltages: 100~240V AC, 50/60Hz, 50 W
Power Connection: IEC in

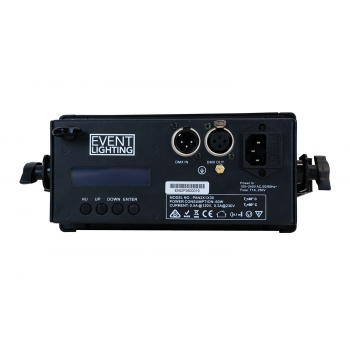

Control
Operational Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase
Display: 4-button LCD control panel
Control Protocol: DMX512
DMX Channels: 3 / 5 / 6 / 9 / 11
Control Interface: 3-pin XLR (optional: 5-pin XLR)
Software Upgrade via DMX: Yes
Housing
Housing Materials: Aluminium Housing, matte black
Cooling: Fanless Cooling
Dimension: 258 x 161 x 190 mm
Net Weight: 2.5 kg
Product Specification Sheet Download
User Manual Ver2.1 Download
User Manual Ver2.0 Download
Spare Parts
Photometrics
Light Source: 2x 30W RGB COB LEDs
Beam Angle: 60°
Output: 580 lux @ 2 m RGB full on
PWM: 11,700 Hz
LED Lifespan: 50,000 hours
Effects
Dimming: 8-bit + 4x 16-bit Dimming Curves
Strobe: 1~30 Hz
Power
Input Voltages: 100~240V AC, 50/60Hz, 50 W
Power Connection: IEC in
Control
Operational Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase
Display: 4-button LCD control panel
Control Protocol: DMX512
DMX Channels: 3 / 5 / 6 / 9 / 11
Control Interface: 3-pin XLR (optional: 5-pin XLR)
Software Upgrade via DMX: Yes
Housing
Housing Materials: Aluminium Housing, matte black
Cooling: Fanless Cooling
Dimension: 258 x 161 x 190 mm
Net Weight: 2.5 kg
Product Specification Sheet Download
User Manual Ver2.1 Download
User Manual Ver2.0 Download
Spare Parts
