Product details

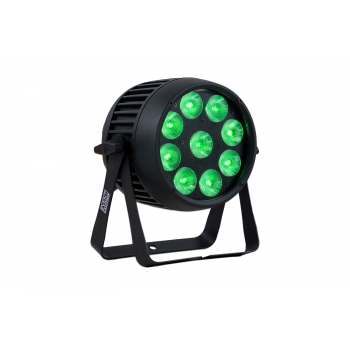

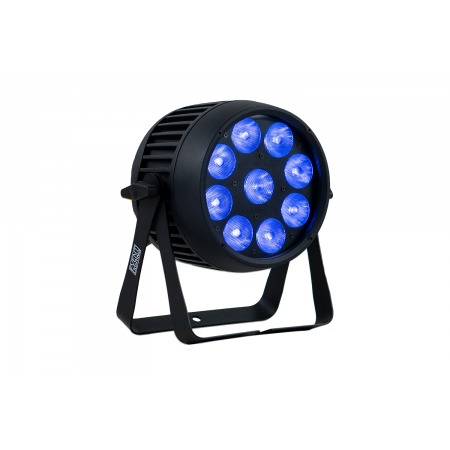

The PAR9X15O is a mid sized outdoor rated fixture, featuring 9x 15 W RGBW LEDs in a die cast aluminium housing, a 25° beam angle, and the ability to install wireless DMX.
Photometrics
Light Source: 9x 15 W RGBW LEDs

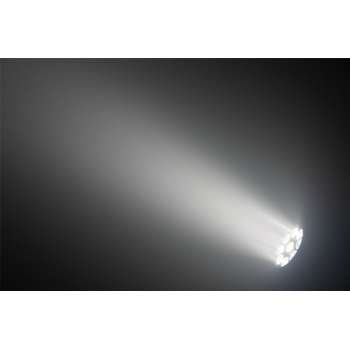

Beam Angle: 25°
Output: 22,500 lux on @ 2 m RGBW full on
PWM: 20,000 Hz
LED Life: 50,000 hours
Effects
Dimming: 0~100%
Strobe: 1~20 Hz
Power
Input Voltages: 100V~240V AC,50/60Hz, 150 W
Power Connection: Seetronic® Outdoor Powerkon in/out
Control
Operational Modes: DMX, manual, auto, sound active, master/slave (optional: Wireless DMX)
Display: LCD full colour control panel
Control Protocol: DMX512 (optional: Wireless DMX)
DMX Channels: 4 / 6 / 8
DMX Interface: Seetronic® 3 Pin Outdoor DMX in/out
Housing
Housing Materials: Die-cast aluminium, matte black finish
IP Rating: IP65
Cooling: Fanless Cooling
Dimension: 195 x 234 x 144 mm
Net Weight: 6.5 kg
MISC
Accessories Included: 1M Seetronic® Outdoor Powercon, 1M Seetronic® Outdoor DMX Cable
Road case: PAR9CASEWC Fits 6 Units.
IMPORTANT: Only use the provided Outdoor DMX cable in the device’s DMX out port. The use of other cables will cause the cable to become stuck in the port, requiring the unit to be repaired.
Product Specification Sheet Download
Download the User Manual
Spare Parts
