Product details

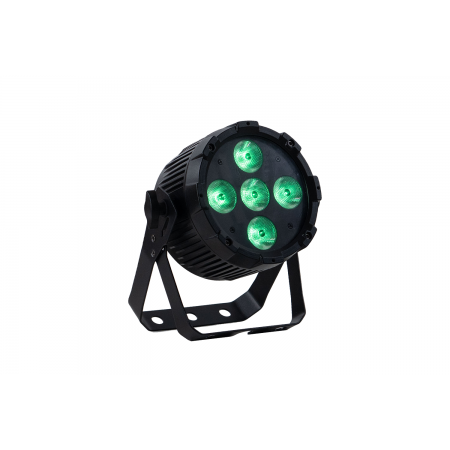

The PARRGBW12X8 is a 5-LED 4-in-1 fixture with RGBW LEDs.
Photometrics
Light Source: 5x 8W RGBW LEDs
Beam Angle: 22° (Optional: 55°)
Output: 1,910 lux @ 2 m RGBW full on
PWM: 2,940 Hz
LED Life: 50,000 hours
Effects
Dimming: 8-bit Dimming Control / 3x 16-bit Dimming Curves
Strobe: 1~30 Hz
Power
Input Voltages: 100~240 V AC,50/60 Hz, 40 W
Power Connection: IEC in
Control
Operation Modes: DMX, manual, auto, sound active, master/slave
Display: 4-button LCD control panel
Control Protocol: DMX512
DMX Channel Mode: 2 / 3 / 4 / 6 / 10
Control Interface: 3-pin XLR (Optional: 5-Pin XLR)
Software Upgrade via DMX: Yes
Housing
Housing Materials: Die-cast aluminium housing, matte black finish
Cooling: Fanless Cooling
Dimension: 207 x 227 x 120 mm
Net Weight: 1.9 kg
MISC

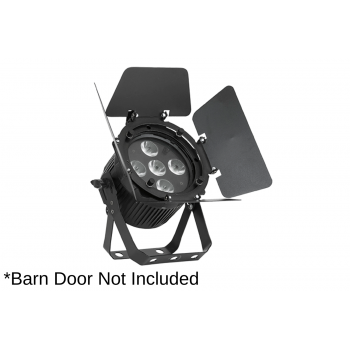

Barn door: PAR5RBD
Road case:PAR5BDCASEWC, PAR5CASEWC
Product Specification Sheet Download
User Manual Ver2.3 Download
User Manual Ver2.0 Download
Spare Parts
