Product details
Photometrics
Light Source: 200 W 3,000 K COB LED
CRI: 97
Beam Angle: 19°, 26° or 36°
Output: 4157 lux @ 5 m @ 19°, 3848 lux @ 5 m @ 26°, 2748 lux @ 5 m @ 36°
Optional Lens: PSLII19, PSLII26, PSLII36
PWM: 8,000 Hz
LED Lifespan: 50,000 hours
Effects
Dimming: 0~100%, 16-bit
Strobe: 1~25 Hz

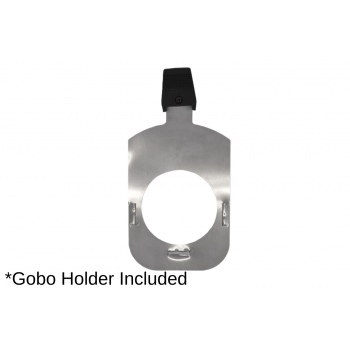

Gobo holder size: 'B' 87.5 mm overall size, 35 mm image size

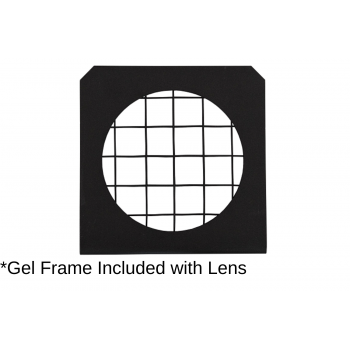

Gel Frame: Included
Iris: PSIRIS (Optional)
Power
Power Supply: 100~240 V AC, 50/60 Hz 200 W
Power Connection: Neutrik® PowerCON in / out
Control
Operational Modes: DMX, manual, master/slave
Display: 4-button LCD control panel
Control Protocol: DMX512
DMX Channels: 1 / 2 / 3
Control Interface: 3-pin XLR
Housing
Housing Materials: Aluminium and ABS, matte black finish
Cooling: Variable Speed Fan
Net Weight: 8.6 kg
Overall Size: 538 X 270 X 395mm
Comparison Chart Download
Product Specification Sheet Download
User Manual v1.8.0 Download
Light Source: 200 W 3,000 K COB LED
CRI: 97
Beam Angle: 19°, 26° or 36°
Output: 4157 lux @ 5 m @ 19°, 3848 lux @ 5 m @ 26°, 2748 lux @ 5 m @ 36°
Optional Lens: PSLII19, PSLII26, PSLII36
PWM: 8,000 Hz
LED Lifespan: 50,000 hours
Effects
Dimming: 0~100%, 16-bit
Strobe: 1~25 Hz
Gobo holder size: 'B' 87.5 mm overall size, 35 mm image size
Gel Frame: Included
Iris: PSIRIS (Optional)
Power
Power Supply: 100~240 V AC, 50/60 Hz 200 W
Power Connection: Neutrik® PowerCON in / out
Control
Operational Modes: DMX, manual, master/slave
Display: 4-button LCD control panel
Control Protocol: DMX512
DMX Channels: 1 / 2 / 3
Control Interface: 3-pin XLR
Housing
Housing Materials: Aluminium and ABS, matte black finish
Cooling: Variable Speed Fan
Net Weight: 8.6 kg
Overall Size: 538 X 270 X 395mm
Comparison Chart Download
Product Specification Sheet Download
User Manual v1.8.0 Download
