Product details
Photometrics
Light Source: 300 W 3,200K COB LED
CRI: 90
Beam Angle: 19°, 26° or 36°
Output: 4,822 lux @ 5 m @ 19°, 4,465 lux @ 5 m @ 26°, 3,192 lux @ 5 m @ 36°

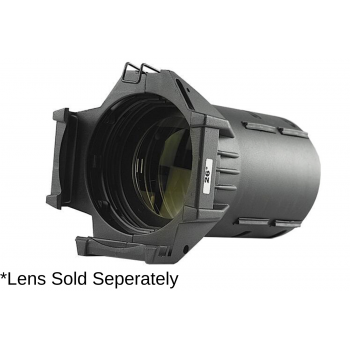

Optional Lens: PSLII19, PSLII26, PSLII36
PWM: 8,000 Hz
LED Lifespan: 50,000 hours
Effects
Dimming: 0~100%, 16-bit
Strobe: 1~25 Hz
Gobo holder size: 'B' 87.5 mm overall size, 35 mm image size

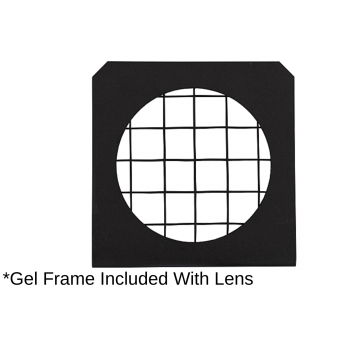

Gel Frame: Optional
Iris: PSIRIS (Optional)
Power
Power Supply: 100~240V AC, 50/60 Hz, 300 W
Power Connection: Neutrik® PowerCON in / out
Control
Operational Modes: DMX, manual, master/slave
Display: 4-button LCD control panel
DMX Protocol: DMX512
DMX Channel Mode: 1 / 2 / 3
DMX Interface: 3-pin XLR
Housing
Housing Materials: Aluminium & ABS, matte black finish
Cooling: Variable Speed Fan
Net Weight: 9.5 kg
Overall Size: 538 X 270 X 427mm
Optional Lens: PSLII19, PSLII26, PSLII36
Product Specification Sheet Download
Download User Manual
Marketing Assets
Light Source: 300 W 3,200K COB LED
CRI: 90
Beam Angle: 19°, 26° or 36°
Output: 4,822 lux @ 5 m @ 19°, 4,465 lux @ 5 m @ 26°, 3,192 lux @ 5 m @ 36°
Optional Lens: PSLII19, PSLII26, PSLII36
PWM: 8,000 Hz
LED Lifespan: 50,000 hours
Effects
Dimming: 0~100%, 16-bit
Strobe: 1~25 Hz
Gobo holder size: 'B' 87.5 mm overall size, 35 mm image size
Gel Frame: Optional
Iris: PSIRIS (Optional)
Power
Power Supply: 100~240V AC, 50/60 Hz, 300 W
Power Connection: Neutrik® PowerCON in / out
Control
Operational Modes: DMX, manual, master/slave
Display: 4-button LCD control panel
DMX Protocol: DMX512
DMX Channel Mode: 1 / 2 / 3
DMX Interface: 3-pin XLR
Housing
Housing Materials: Aluminium & ABS, matte black finish
Cooling: Variable Speed Fan
Net Weight: 9.5 kg
Overall Size: 538 X 270 X 427mm
Optional Lens: PSLII19, PSLII26, PSLII36
Product Specification Sheet Download
Download User Manual
Marketing Assets
