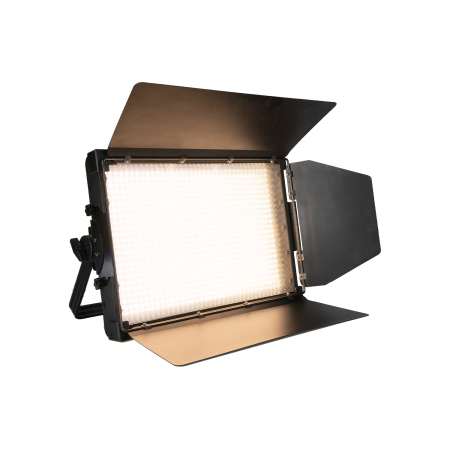

STUDIO200IW – Studio 200W LED panel

Photometrics

Light Source: 200W White SMD LEDs
Beam Angle: 120° with barn doors
Refresh Rate: 600-5,000 Hz
CRI: 97
Colour Temperature: 3,200-5,600 K CCT
Output:

3,200 K: 3,459 lux @ 2m
5,600 K: 4,263 lux @ 2m



Effects

Dimming: 0-100%, 16-bit
Dimming Curves: 4
Preset Colours
Strobe: 0-20 Hz

Power

Input Voltage: 100-240V AC, 50/60 Hz, 200W
Connection: TrueOne in/out

Control

Operational Modes: DMX, manual
Display: 4-button LCD Control Panel
Control Protocol: DMX512, RDM
DMX Channels: 2/3/5
Control Interface: 3-pin DMX in/out

Housing

Materials: Die-cast aluminium, matte black finish
IP Rating: IP20
Cooling: Fanless
Dimensions: 485x350x160 mm
Net Weight: 8 kg
Tilt Angle: ±90°
