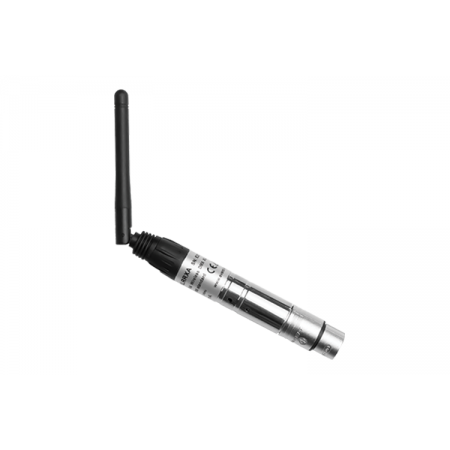

WDMX5XLRRXA – Wireless DMX 5pin XLR plug receiver 2.4Ghz W DMX and EL DMX standard Female XLR

Wireless DMX is the ideal solution for fast setups, temporary installations, touring and production duties or places where you are physically unable to run DMX cables. WDMXXLRRXA operates as a receiver

Specifications：

Power supply: 5VDC
Maximum Transmission power: 22dBm
Receiver Sensitivity: -110dBm
Band : 2.402Ghz – 2.480Ghz, ISM , 79 channels
Spread Spectrum: FHSS, 1100 hops/s
Modulation GFSK
Channel Groups: 6 in ELDMX mode
5-pin Female XLR



Coverage Area



Transmitter
Receiver
Line of sight MAX*
Through a single brick wall*


WDMXBASETRX
WDMXBASETRX
300m
50m


WDMXBASETRX
WDMX5XLRRXA
300m
50m


WDMX5XLRTX
WDMXBASETRX
300m
50m


WDMX5XLRTX
WDMX5XLRRXA
300m
50m





*Distance is given as measured in ideal RF conditions. Actual distance will vary depending on your environment

User Manual Download
