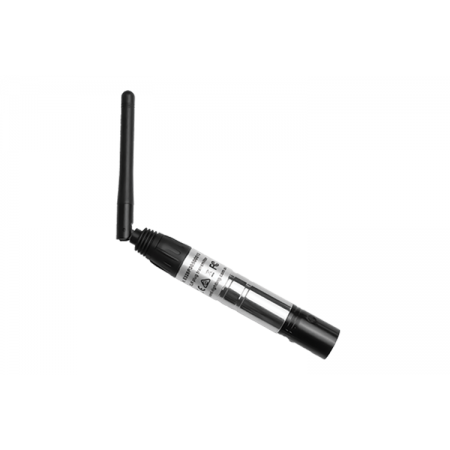

WDMXXLRTX – Wireless DMX XLR plug transmitter 2.4Ghz W DMX and EL DMX standard Male XLR

Wireless DMX is the ideal solution for fast setups, temporary installations, touring and production duties or places where you are physically unable to run DMX cables. WDMXXLRTX operates as a transmitter

Specifications：

Power supply: 5VDC
Maximum Transmission power: 22dBm
Receiver Sensitivity: -110dBm
Band: 2.402Ghz – 2.480Ghz, ISM, 79 channels
Spread Spectrum: FHSS, 1100 hops/s
Modulation GFSK
Channel Groups: 6 in ELDMX mode
3-pin male XLR



Coverage Area



Transmitter
Receiver
Line of site MAX*
Through a single brick wall*


WDMXBASETRX
WDMXBASETRX
300m
50m


WDMXBASETRX
WDMXXLRRX
200m
30m


WDMXXLRTX
WDMXBASETRX
300m
50m


WDMXXLRTX
WDMXXLRRX
200m
30m





*Distance is given as measured in ideal RF conditions. The actual distance will vary depending on your environment

User Manual Download
