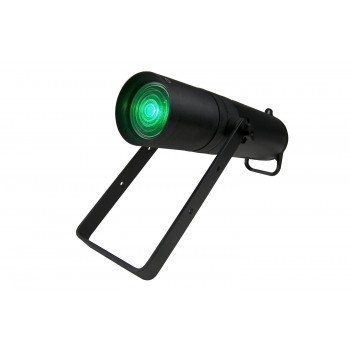

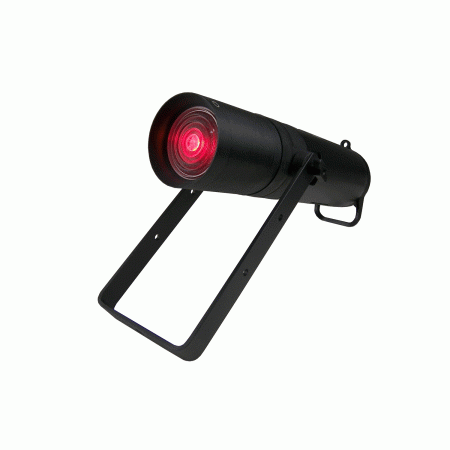

ZP200LEFC – ZoomPro Light Engine 200W RGBAL (lens required)

The versatile ZOOMPRO system is comprised of a 200 W full colour LED Engine, with a choice of lenses. Options include two zoom profile lenses, fresnel lens and cyc lens.
Photometrics

Light Source: 200 W RGBAL (RGB, Amber, Lime) LED Module
CRI:
PWM: 1,000-8,000 Hz
LED Lifespan: 50,000 hours
PROFILE Lens: ZPLP1828

Output: lux @ 5 m at 18°, 1692 lux @ 5 m at 28°
Beam Angle: 18°- 28°


PROFILE Lens: ZPLP2636

Output: lux @ 5 m at 26°, 1692 lux @ 5 m at 36°
Beam Angle: 26°- 36°


FRESNEL Lens: ZPLF 80mm Fresnel

Beam Angle: 16°- 25°
Field Angle: 30°- 55°
Output: lux @ 2.5 m at 16°, 1685 lux @ 2.5 m at 25°


CYC Lens: ZPLCYC

Output: lux @ 2.5 m at 120°


Beam Angle: 120°



Effects

Dimming: 0~100%, 8-bit / 16-bit
Strobe: 1~25 Hz
Gobo Holder: Included

Power

Input Voltage: 100~240 V AC, 50/60 Hz, 200 W
Power Connection: Fixed

Control

Operational Modes: DMX, Manual & Master / Slave
Display: 4-Button LCD control panel
DMX Protocol: DMX512
DMX Channels: 6/9
DMX Interface: 3-pin XLR

Housing

Housing Materials: Aluminium, matte black finish
Cooling: Sensor Thermostat Controlled Variable Speed Fan
Dimension: LED Engine: 241 X 105 X 310 mm

Profile Lens: 262 X 192 X 192 mm
Fresnel Lens: 105 X 105 X 151 mm


Net Weight: LED Engine 3.3 kg

Profile Lens: 1.9 kg
Fresnel Lens: 0.9 kg
Cyc Lens: 0.4 kg



Download the User Manual
